MANUAL CLIPS

Manual clips 14811 & 16611 are designed for fixing RAIL system to the floor (see code 1300). It is also perfect for direct installation of pipes to the ground. The clips are available in two lengths: 48mm and 66mm, used depending on the thickness of used insulation layer. Clips are made of polypropylene material, offered in red colour, which is very helpful to work with.

The Cavalotto type manual clip, code 1400, is used to fix pipes in system boards. Thanks to its design, it prevents the pipe from being disconnected from the insulation by blocking it with a bridge between the tips.

Manual clips screwed into the ground, code 1460, are used to grip and fix the pipe to the
insulation and floor. Provides additional stabilization of the pipe installation system.

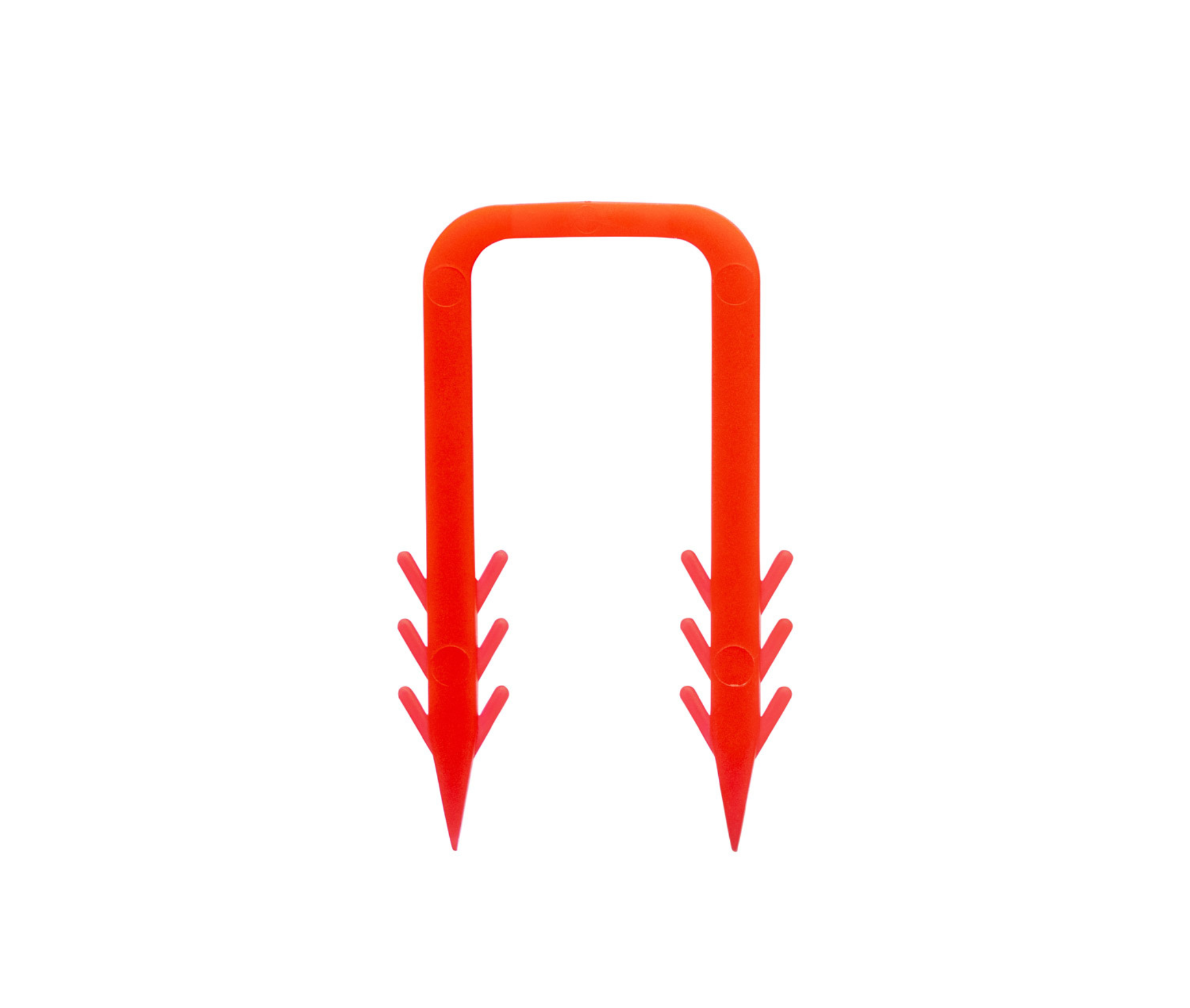

MANUAL CLIPS 48 mm

Length: 48mm
Insertion depth: 30mm
For pipe diameters: from 14mm – till 20mm
Colour red; Material polypropylene
Fixing method – manual pressure to the ground for mounting RAIL system
Packaging in bag 100 pcs
Pallet: 24 boxes each 50 bags = 1200 bags

download technical sheet

CODE: 14811

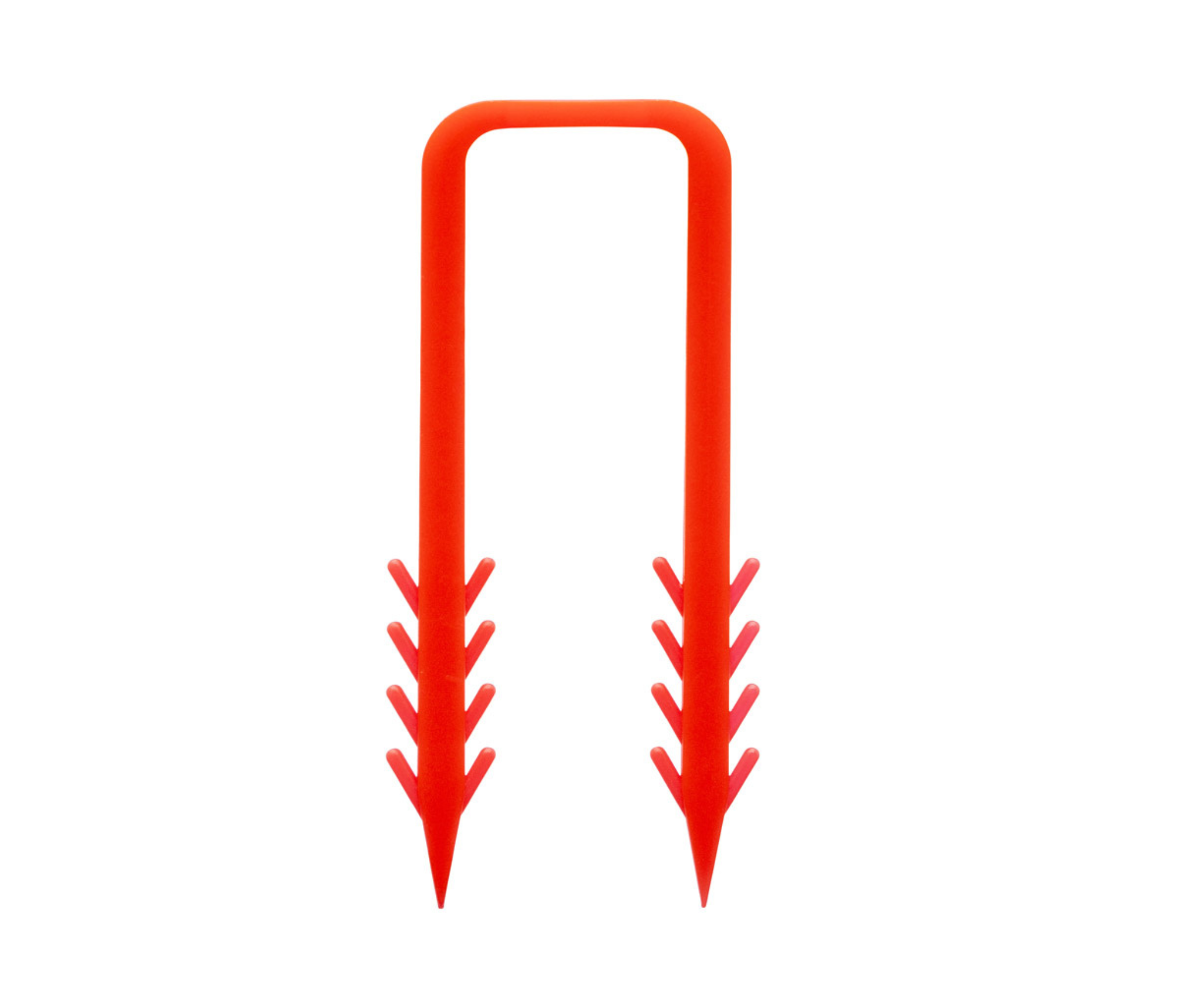

MANUAL CLIPS 66 mm

Length: 66mm
Insertion depth: 48mm
For pipe diameters: from 14mm – till 20mm
Colour red; Material polypropylene
Fixing method – manual pressure to the ground for mounting RAIL system
Packaging in bag 200 pcs
Pallet: 24 boxes each 25 bags = 600 bags

download technical sheet

CODE: 16611

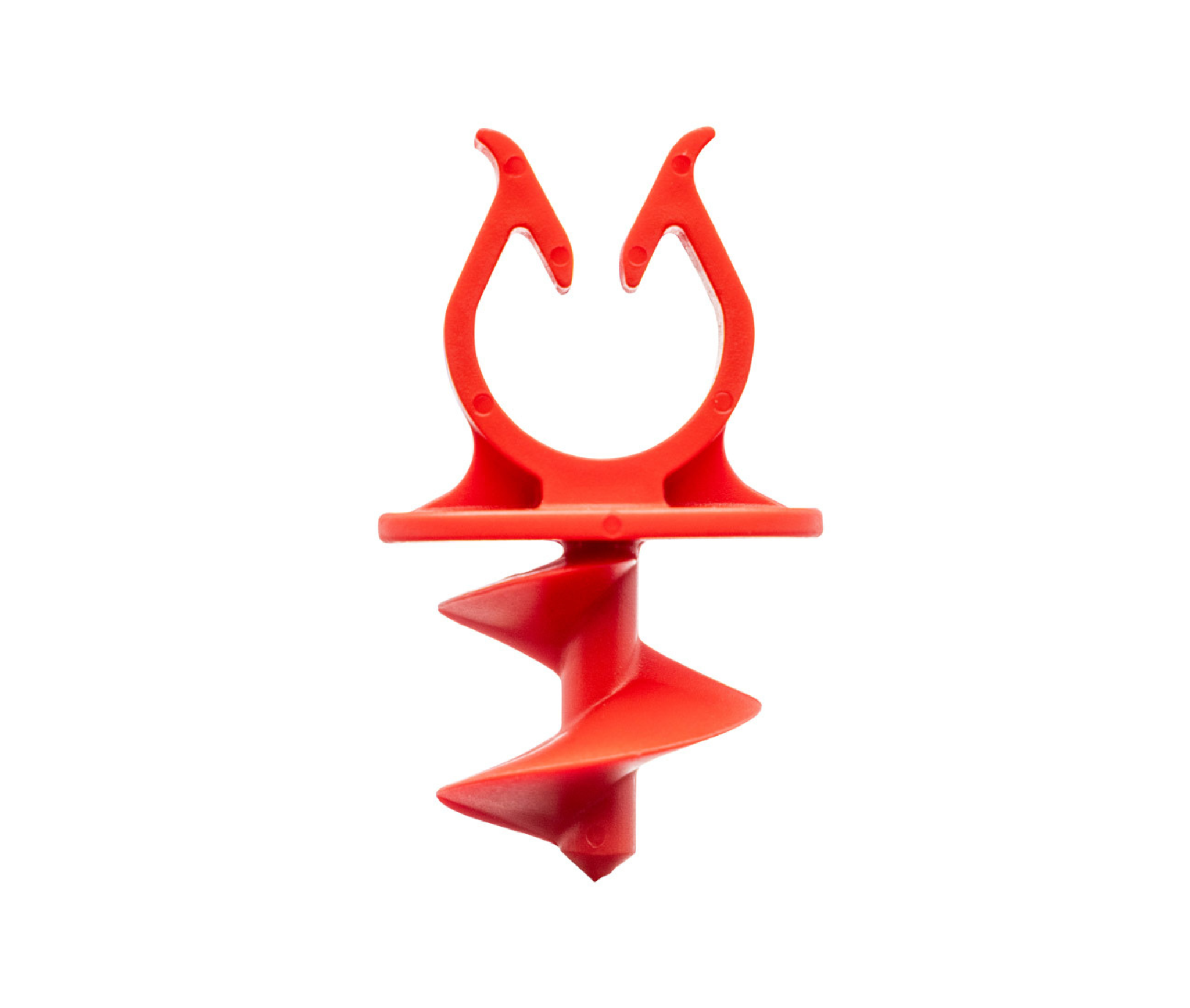

CLIP SCREWED IN ISOLATION

Length: 60 mm
Insertion depth: 27 mm
For pipe diameters: from 14mm – till 20mm
Colour red; Material polypropylene
fixing method – manual pressure of pipe to the ground to immobilize it
Packaging box 50 pcs
Pallet: 20 collecting boxes each 50 boxes

CODE: 1460

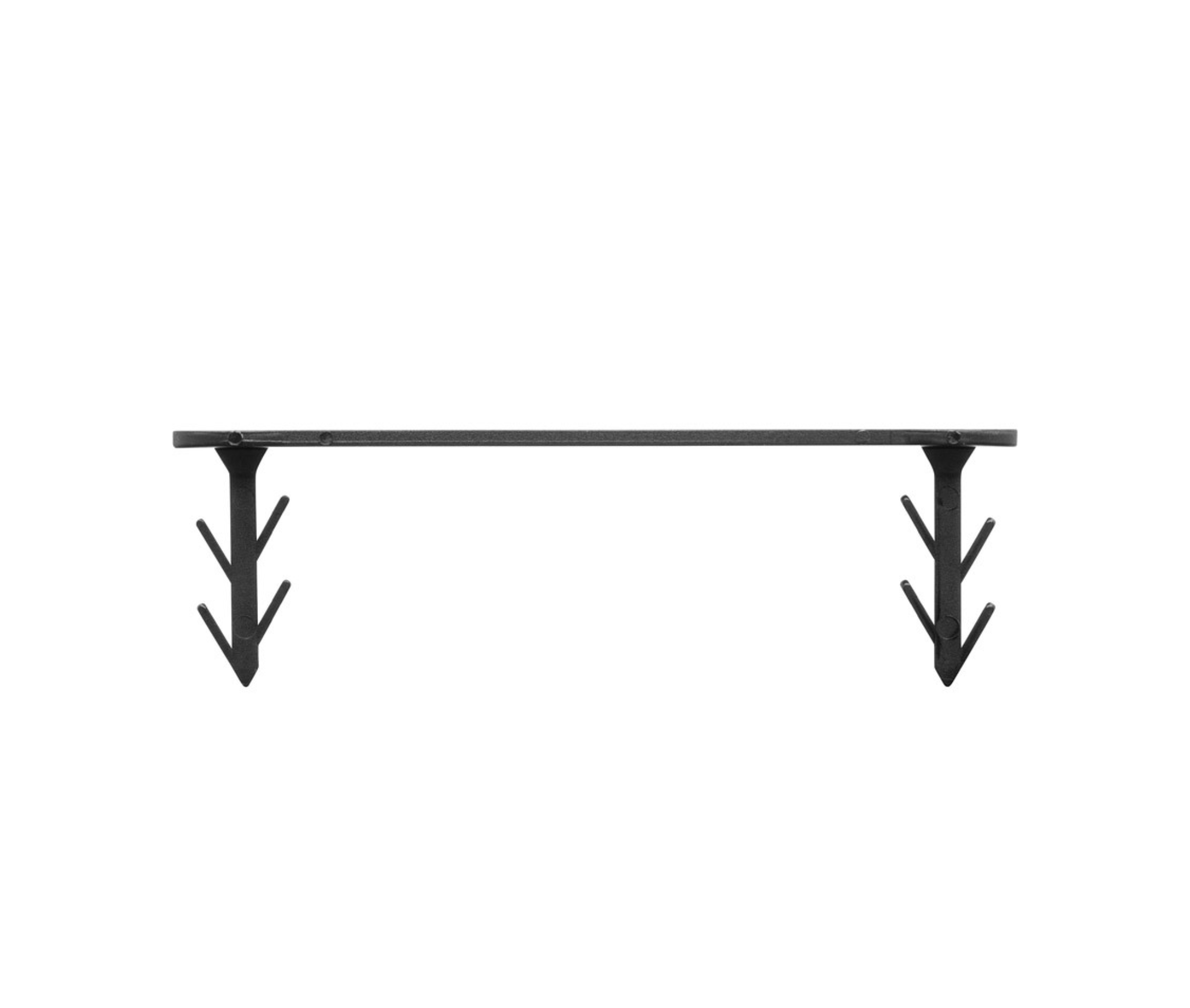

STRADDLE CLIP / CLIP CAVALOTTO

Length: 90 mm
Insertion depth: 48mm
For pipe diameters: from 14mm – till 20mm
Colour black; Material polypropylene
fixing method – manual pressure of pipe to the ground to immobilize it
Packaging in bag 100 pcs
Pallet: 20 boxes each 25 bags = 500 bags

download technical sheet
