PIPE BENDS

Pipe bends in underfloor heating system are used to stiffen pipe at the point of its bending. Usually is used at the point of leading the pipe out of the floor and directing it towards the manifold cabinet, or at the floor, where it is necessary to bend the pipe at an angle of 90 degrees and change its direction. Bends stiffen the pipe, which reduces the risk of excessive stress on the pipe in this place and stabilizes the entire installation.

Bend is made of high-quality material, a combination of polyamide and fiberglass, which, thanks to its properties, is hard, durable and at the same time flexible.



luki

Pipe bend 10-12mm

Material polyamide + fiber glass
For pipes diameter 14 mm
Length 150mm width 22mm height 25mm
Colour black
Packaging box 25 pcs
Colleting box 20 boxes x 25 pcs
pallet: 20 collecting boxes – 10 000 pcs

pobierz kartę techniczną
CODE: 1150
luki

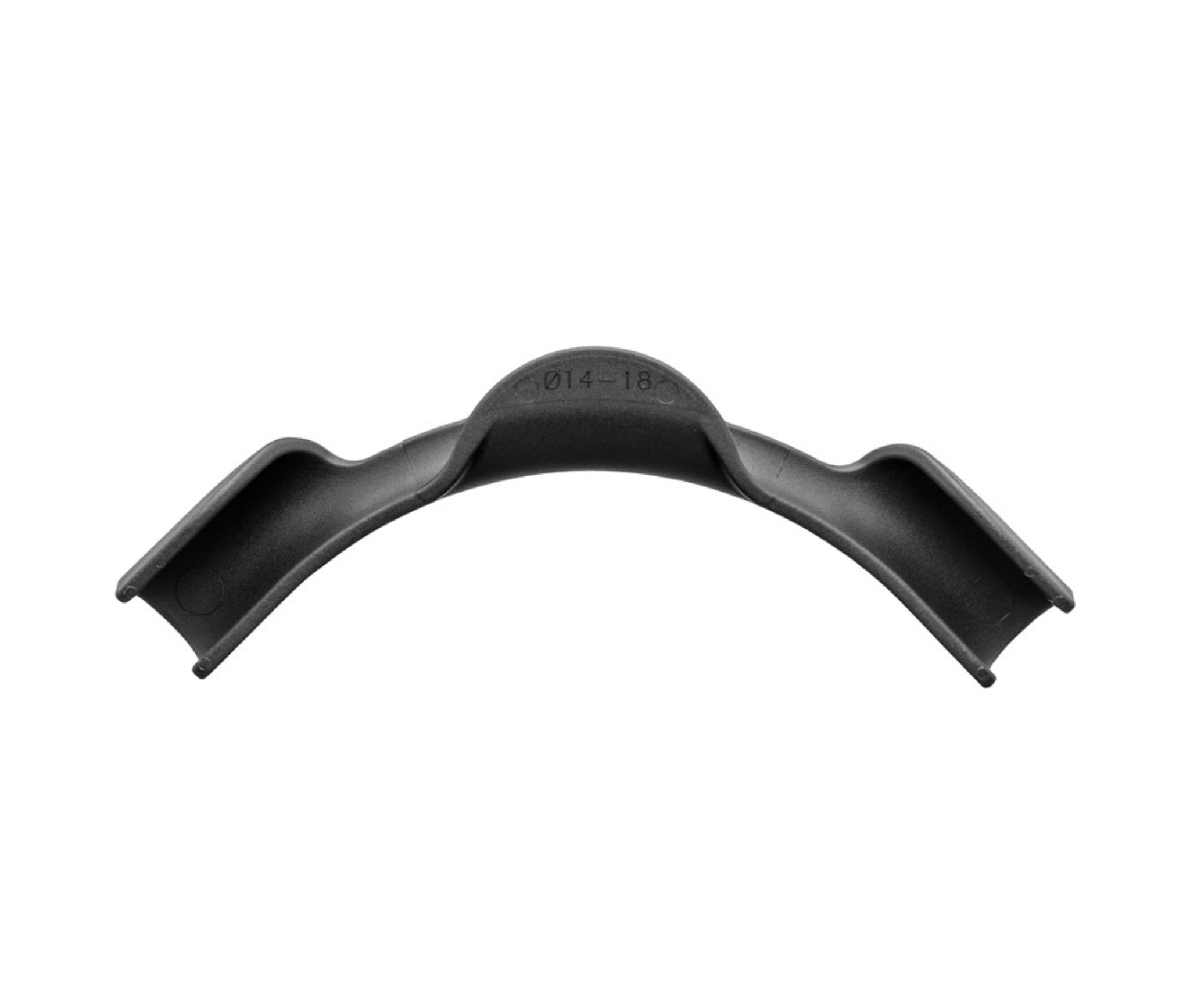

Pipe bend 16-18 mm

Material polyamide + fiber glass
For pipes diameter 16-18 mm
Length 150mm width 22mm height 25mm
Colour black
Packaging box 25 pcs
Colleting box 20 boxes x 25 pcs
pallet: 20 collecting boxes – 10 000 pcs

pobierz kartę techniczną
CODE: 1100
luki

Pipe bend 20-22 mm

Material polyamide + fiber glass
For pipes diameter 20 -22 mm
Length 150mm width 28mm height 30mm
Colour black
Packaging box 25 pcs
Colleting box 10 boxes x 25 pcs
pallet: 20 collecting boxes –  5 000 pcs

pobierz kartę techniczną
CODE: 1200
