manifolds
The underfloor heating manifolds are designed to ensure proper distribution of the heating medium to individual underfloor heating loops.

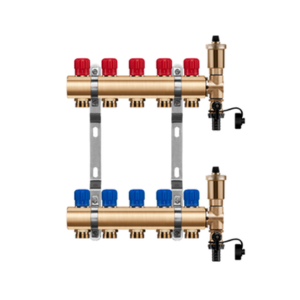

BRASS MANIFOLDS
IN SET AVAIABLE:
- Supply and return manifold
- Air vent and dewatering set for supply and return manifold

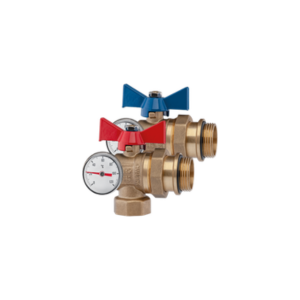

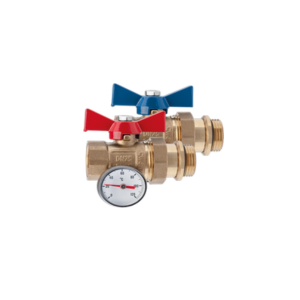

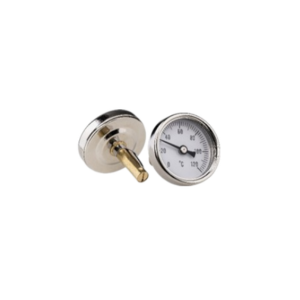

- Cut off valves with thermometer for supply and return manifold
- Manifold brackets with sound absorbing insulation

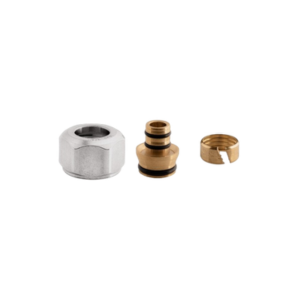

- Nipples ¾’’ “euro-cone” type for every circuit
- Flow meters for every circuit on supply manifold
- Balancing valves for every circuit on return manifold
- End caps with o-rings for return and supply manifold
- Connection with installation by the rat 1’ (screw connection)
- Threads for actuators M30x1,5
| SGI CODE | circuits | material |
|---|---|---|
| 3002 | 2 | bras |
| 3003 | 3 | bras |
| 3004 | 4 | bras |
| 3005 | 5 | bras |
| 3006 | 6 | bras |
| 3007 | 7 | bras |
| 3008 | 8 | bras |
| 3009 | 9 | bras |
| 3010 | 10 | bras |
| 3011 | 11 | bras |
| 3012 | 12 | bras |

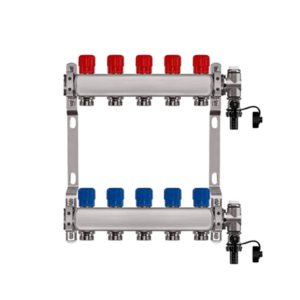

STAINLESS STEEL MANIFOLDS
IN SET AVAIABLE:
- made from polished stainless steel pipe ø 42,4 x1,6 with screwed fittings nickel (having a thread Gz ¾’’ and nest inside ø 18,1 +0,1) per employee resigns to connect the heating circuits.
- supply manifold with flow rates of screwed adjustment range 0÷5 l/min
- return manifold with return valves screwed with thread M30x1,5 adapted for cooperation
with the actuators leave 50mm spacing connection Gw1’’ - 2 dewatering valves G3/8’’ nickel
- 2 stoppers nipples Gz 1‘‘ nickel
- 2 air vents manually Gz 3/8‘‘ nickel
- 2 manifold brackets with sound absorbing insulation
| SGI CODE | circuits | material |
|---|---|---|
| 3102 | 2 | stainless steel |
| 3103 | 3 | stainless steel |
| 3104 | 4 | stainless steel |
| 3105 | 5 | stainless steel |
| 3106 | 6 | stainless steel |
| 3107 | 7 | stainless steel |
| 3108 | 8 | stainless steel |
| 3109 | 9 | stainless steel |
| 3110 | 10 | stainless steel |
| 3111 | 11 | stainless steel |
| 3112 | 12 | stainless steel |
