TOOLS

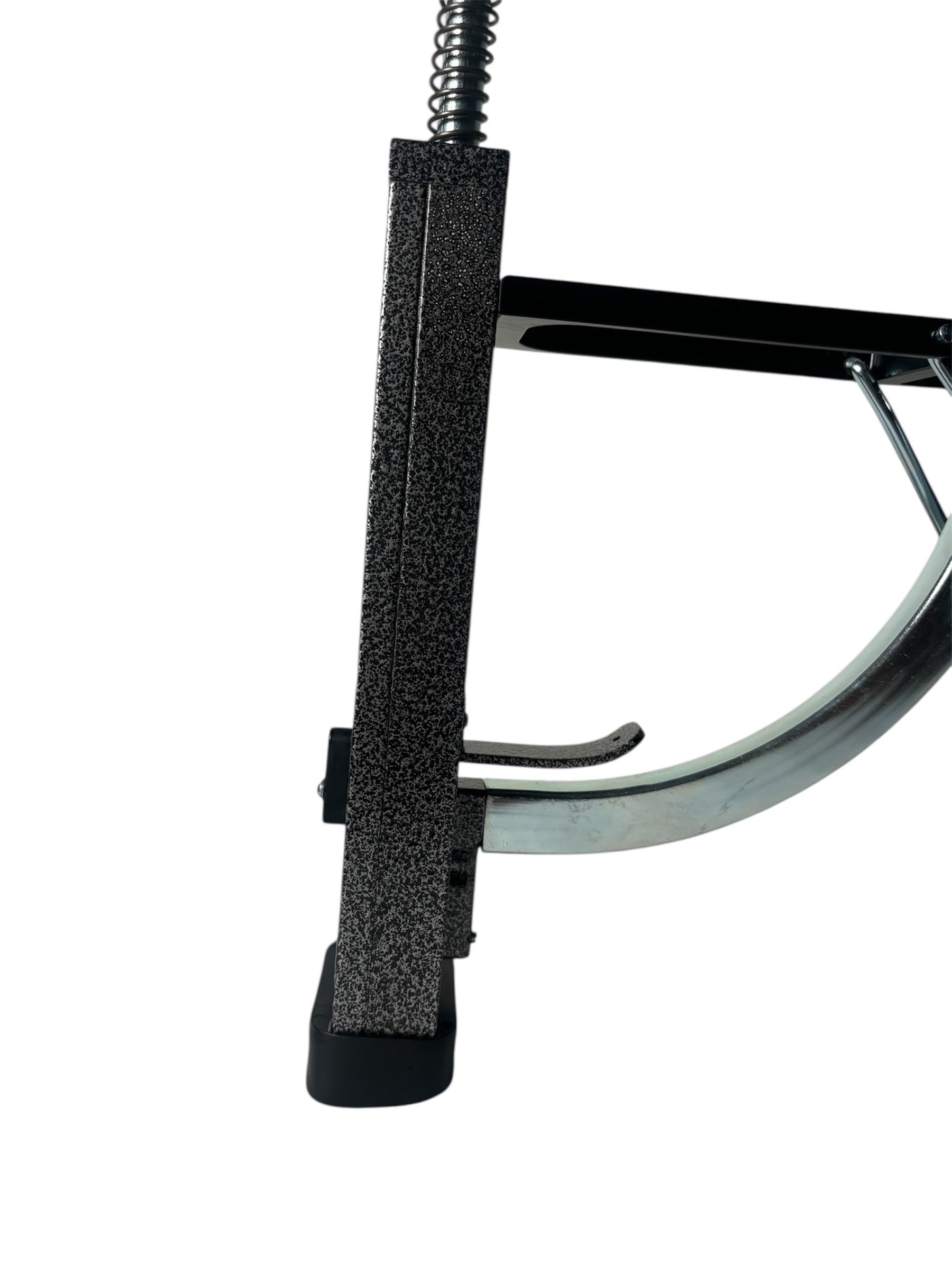

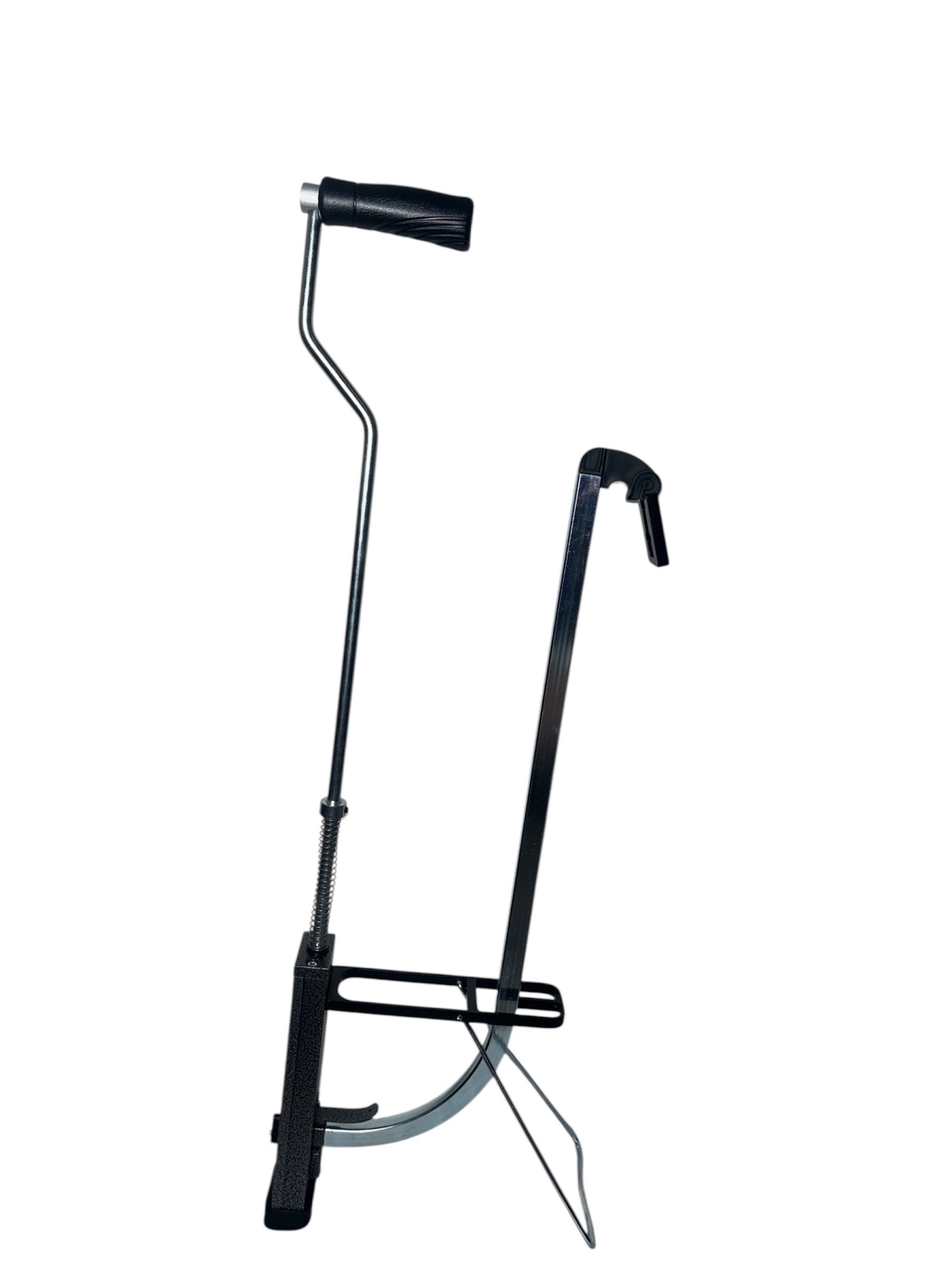

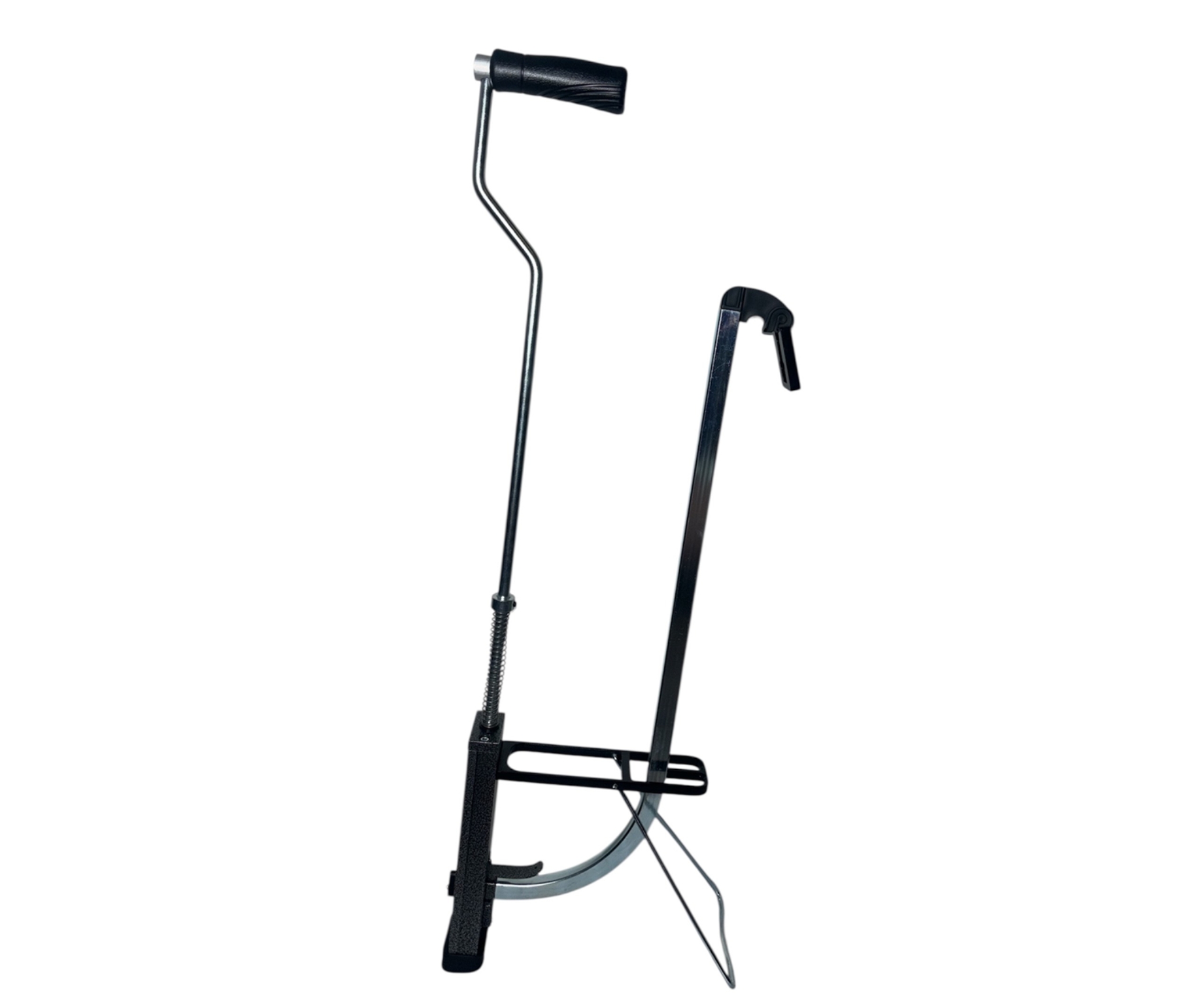

TACKER GUN
Taker gun is a device used for mounting to the floor taped or welded clips in sizes 40-43-50-60 mm. It is an universal device, compatible with all types of clips available on the market, because it has the ability to easily adjust the appropriate position of the clips relative to the driving arm. Work with support of tacker gun gives the end user comfort and efficiency of work increase. The device is made of steel and aluminium, it is a solid and damage-resistant construction.
Dimensions: length 900 mm width 200 mm
For pipes with a diameter of 16-20mm
For mounting clips – see codes: 14011, 14311, 15011, 16011, 14031, 14331, 15031, 16031
Number of pieces on a pallet: 80
CODE: 104

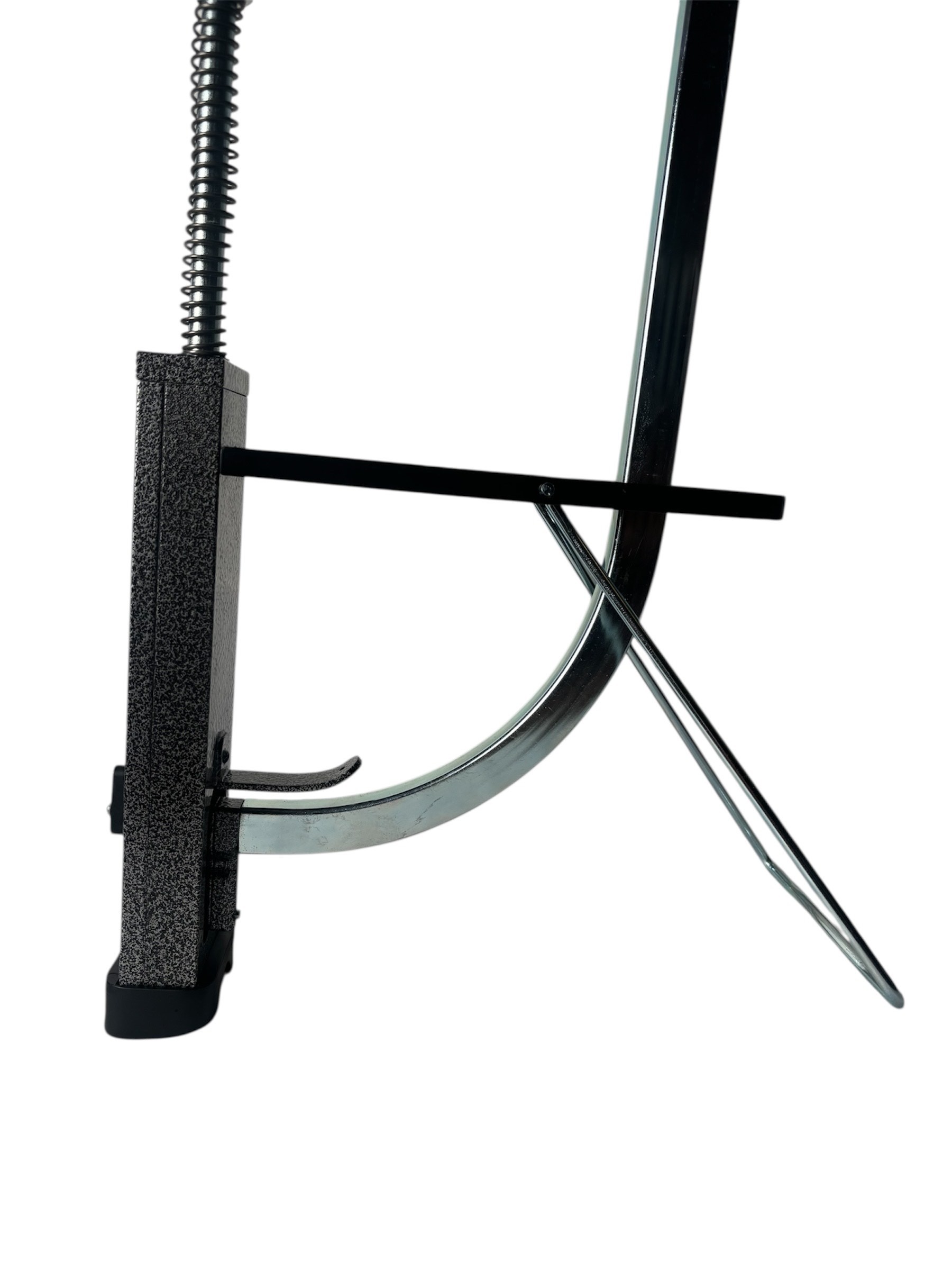

Taker regulation

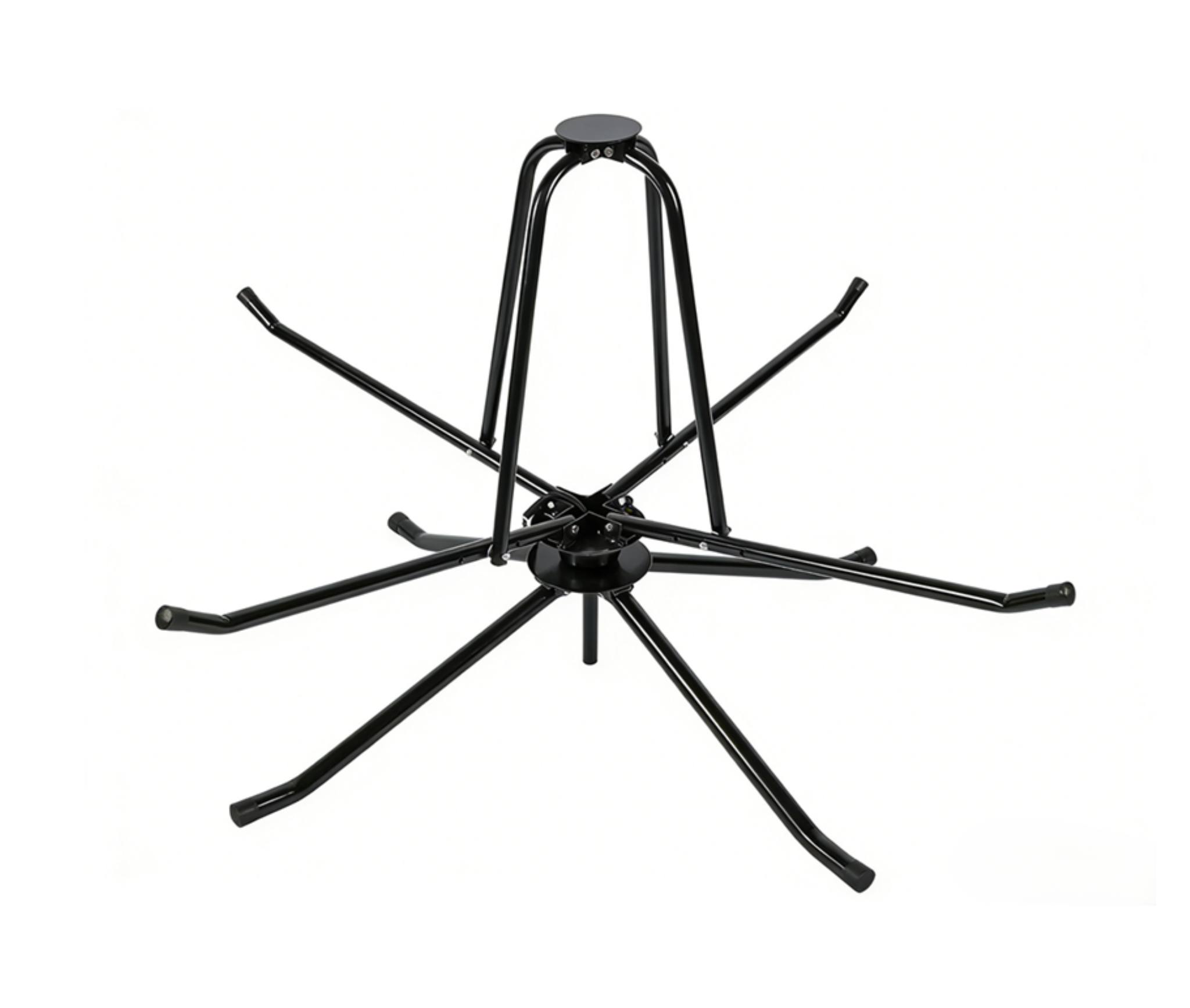

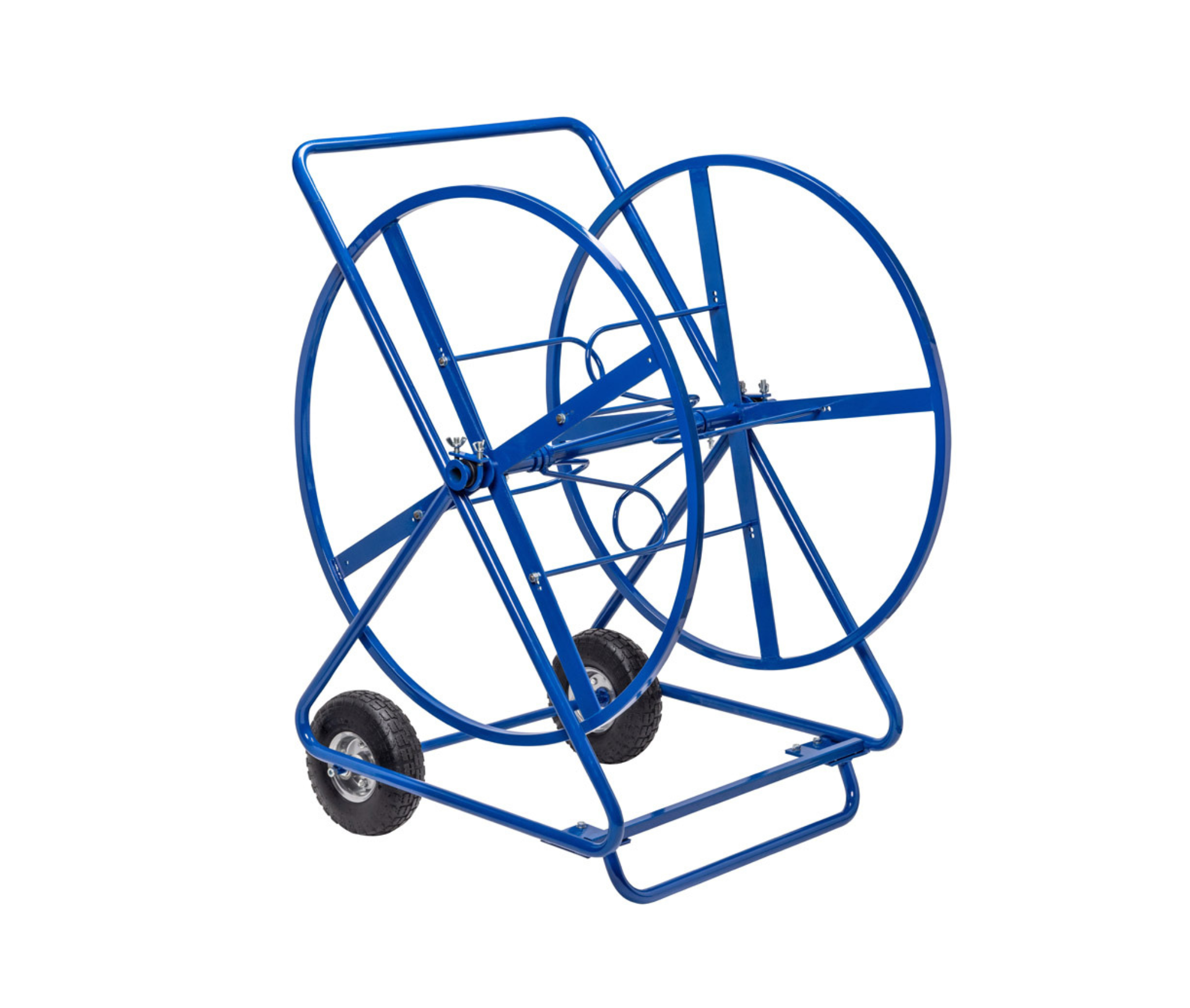

PIPE DECOILER
The decoiler is used to unwind the pipe from the coil during the installation of the underfloor heating system. The device greatly facilitates the work of the installer, thanks to the placement of the pipe coil on the decoiler, the pipe does not get tangled and does not break. The following product versions are available:

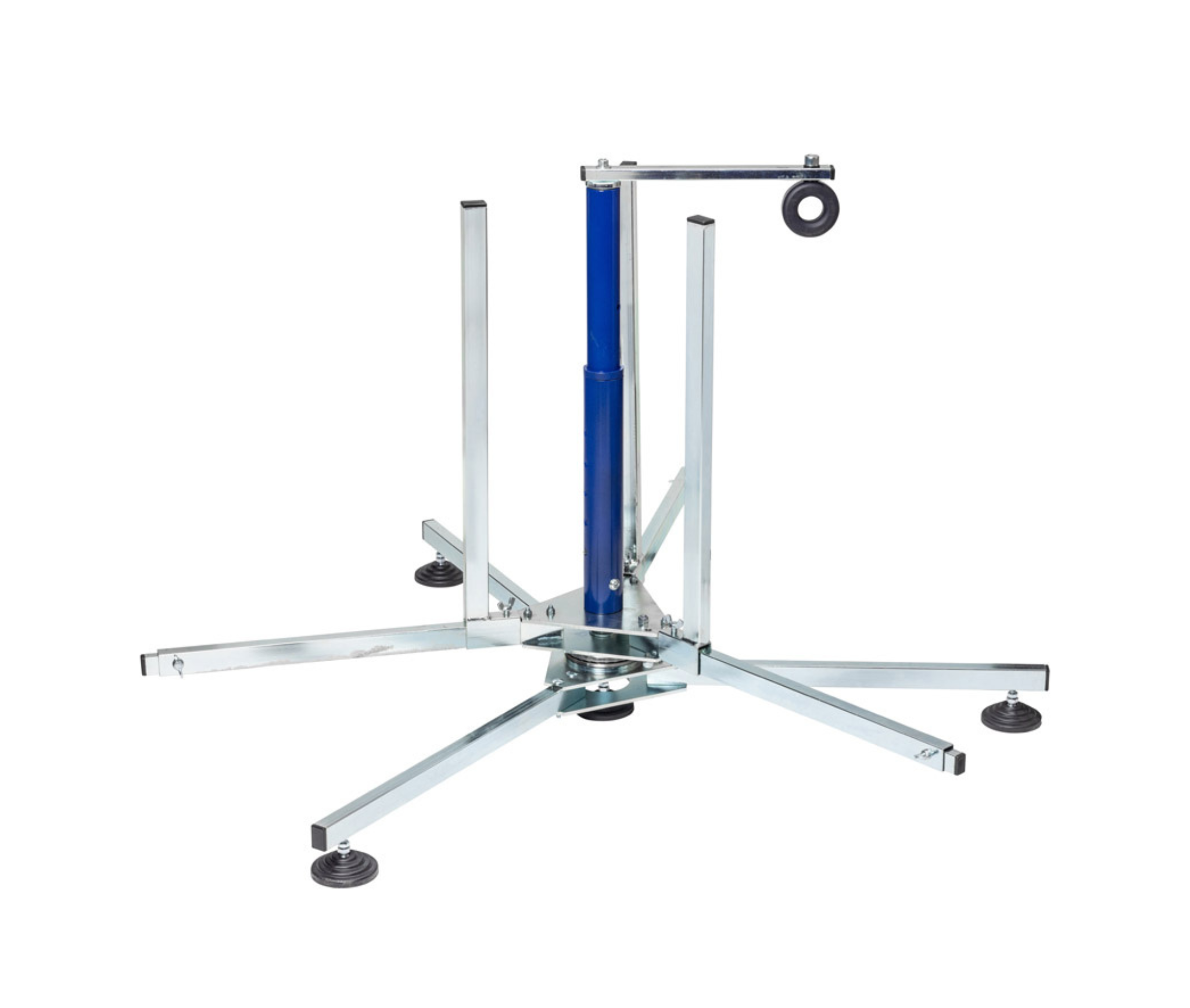

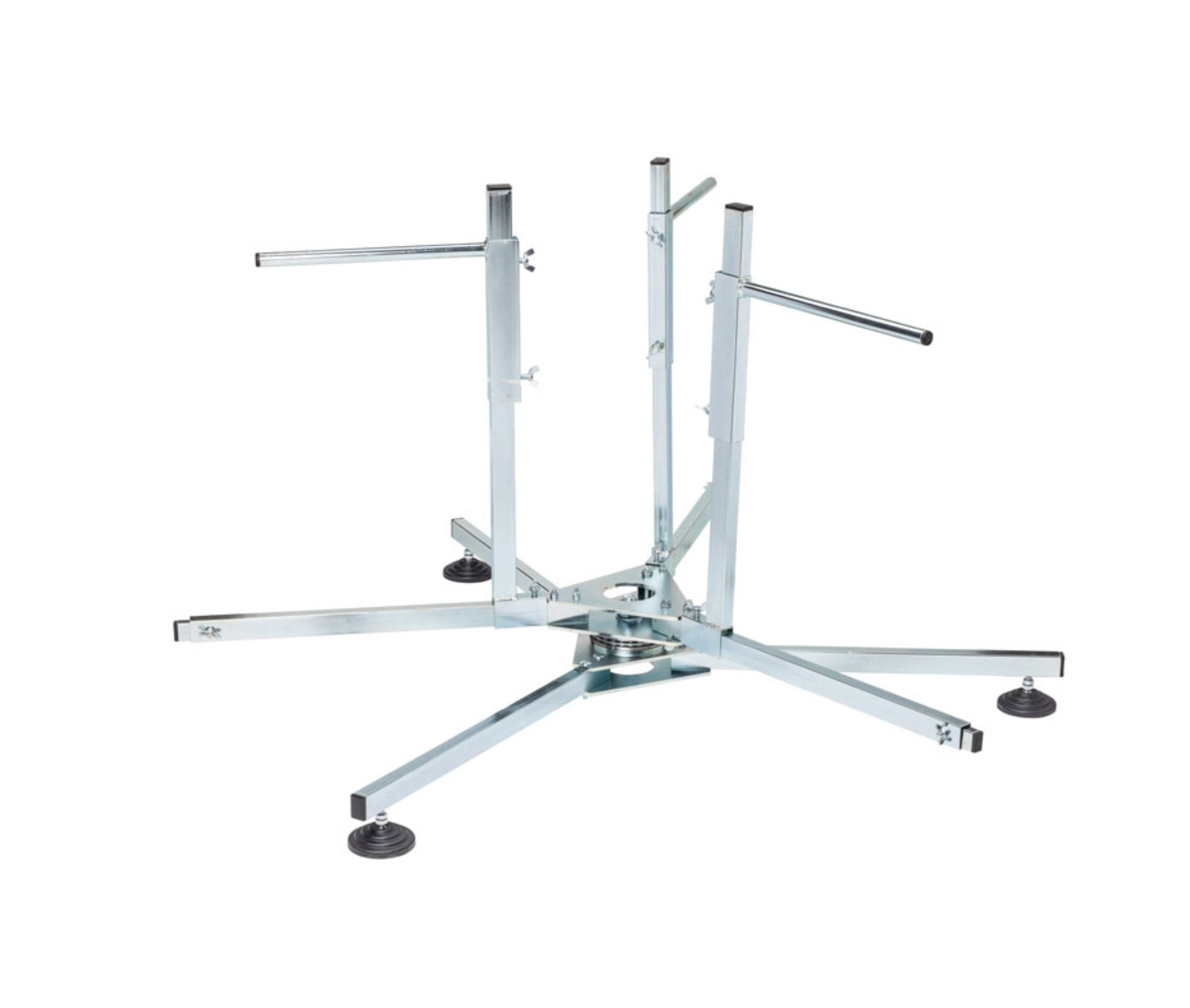

Heavy decoiler with arm
Intended for pipe coils of 200 – 600 meters
has a special arm supporting the unwinding of the pipe from the coil (both from the inside
and outside of the coil) thanks to which the pipe unwinds easily, quickly, is pre-straightened and ready for use.
Dimensions when unfolded: diameter 1200 – 1600mm; height 540-800mm
Material galvanized steel
40 pieces per pallet
CODE: 120HW

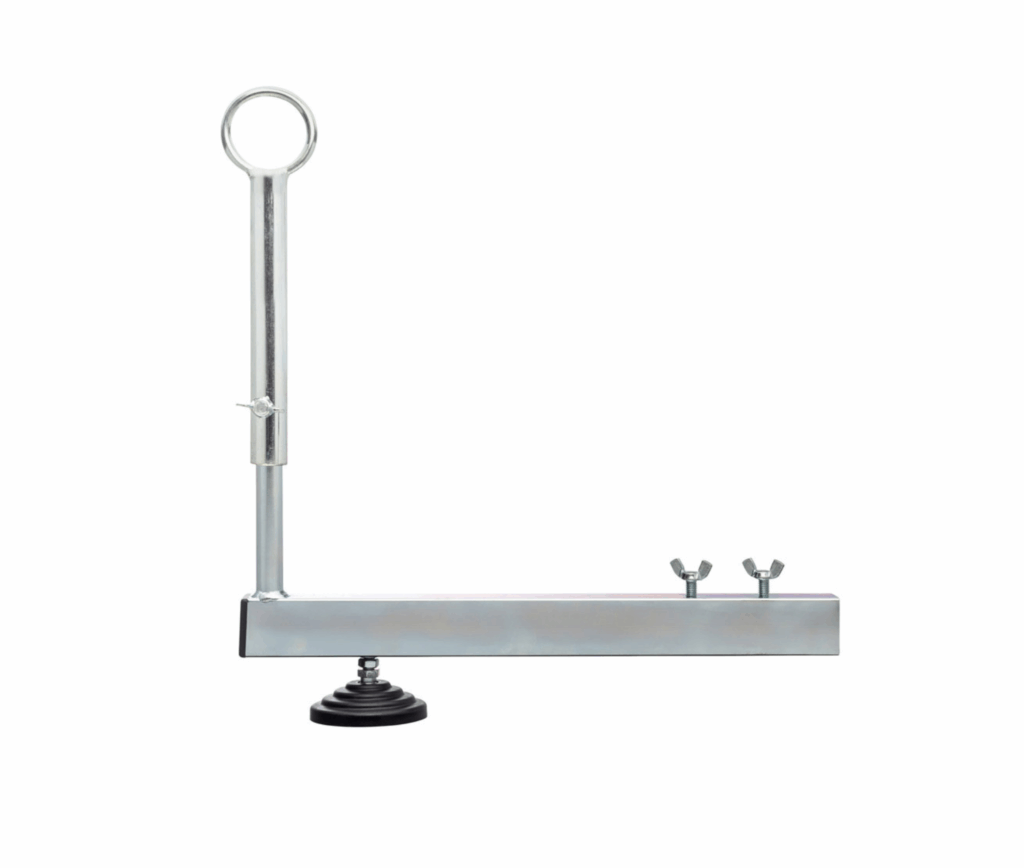

ARM FOR DECOILER
Arm is used to be mounted on a standard or heavy decoiler. It helps to unwind the pipe from the coil. The pipe, while unrolling, passes through a special eyelet on the arm, thanks to which the coil is unwinded quickly and easily, and the pipe is pre-straightened and more convenient for assembly and fixing on floor installation.
Material chrome steel
Dimensions height 370mm, length 400mm, width 80mm
CODE 120K

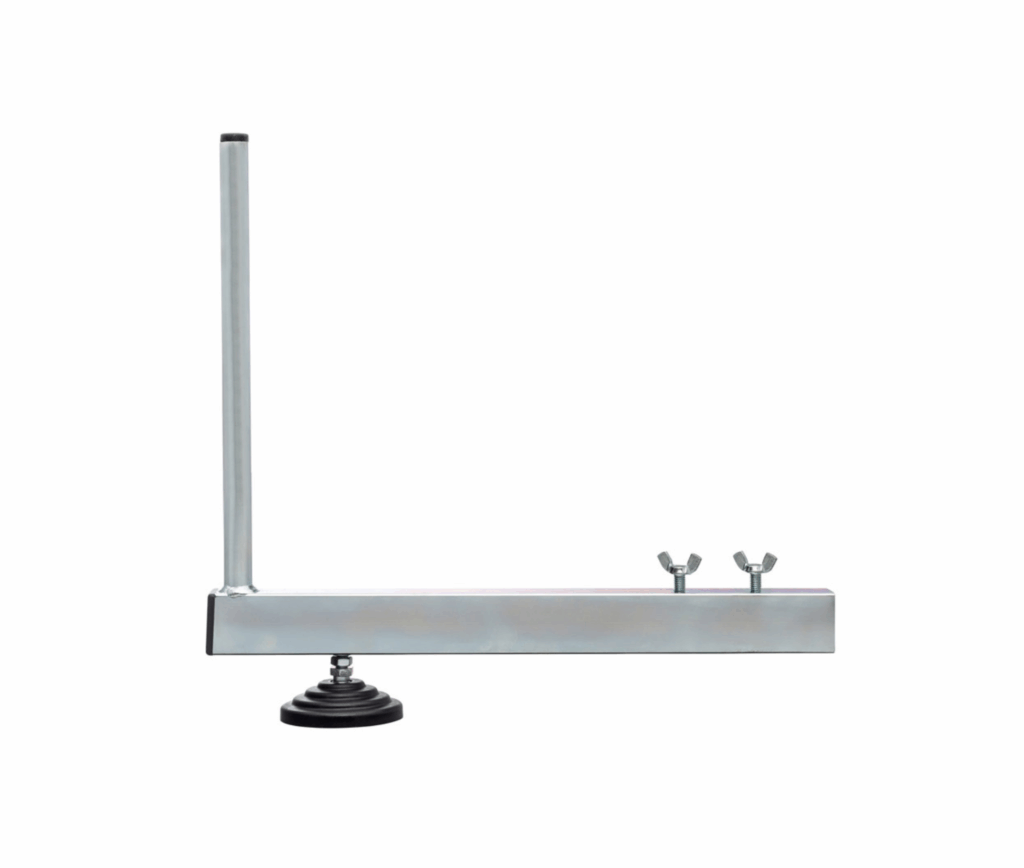

ARM OF DECOILER FOR MOUNTING A PIPE STRAIGHTENER
The arm enables the installation of a straightening machine on a standard or heavy unwinder. It is placed on the unwinder arm with a foot, and the straightening machine is mounted on it. This tool greatly facilitates the unwinding and straightening of a tube from a coil.
Material: chrome-plated steel
Dimensions: height 370 mm, length 400 mm, width 80 mm.
KOD: 120P

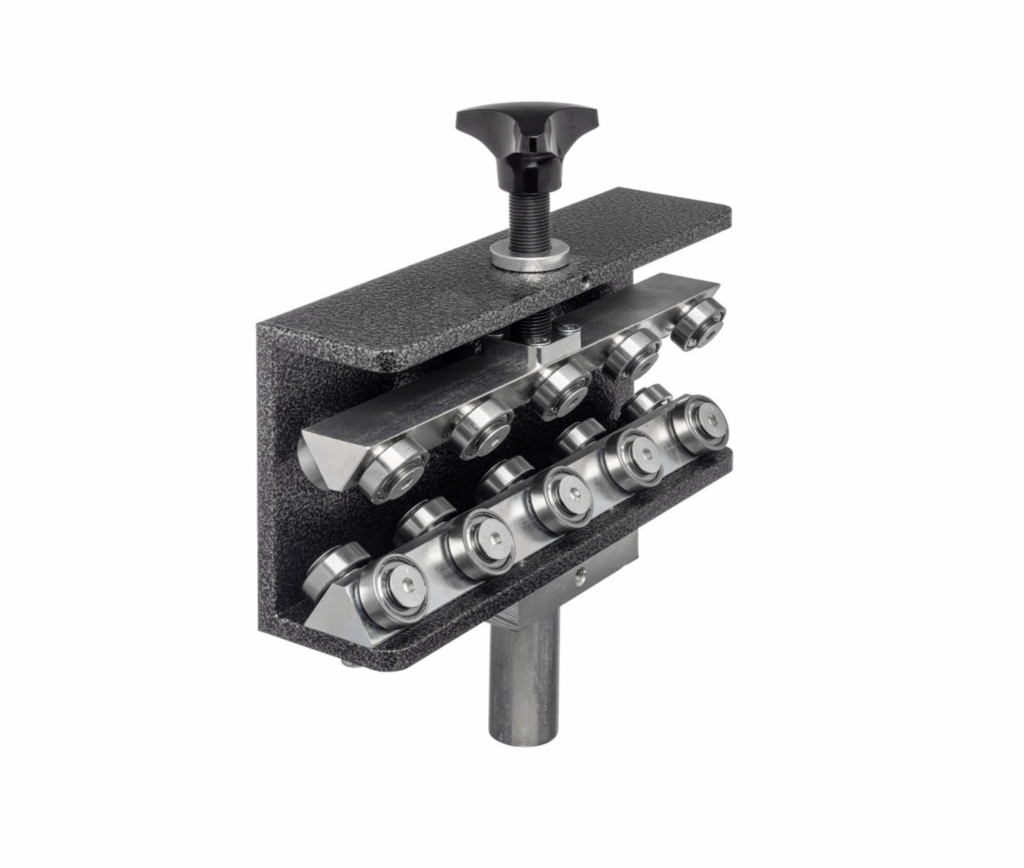

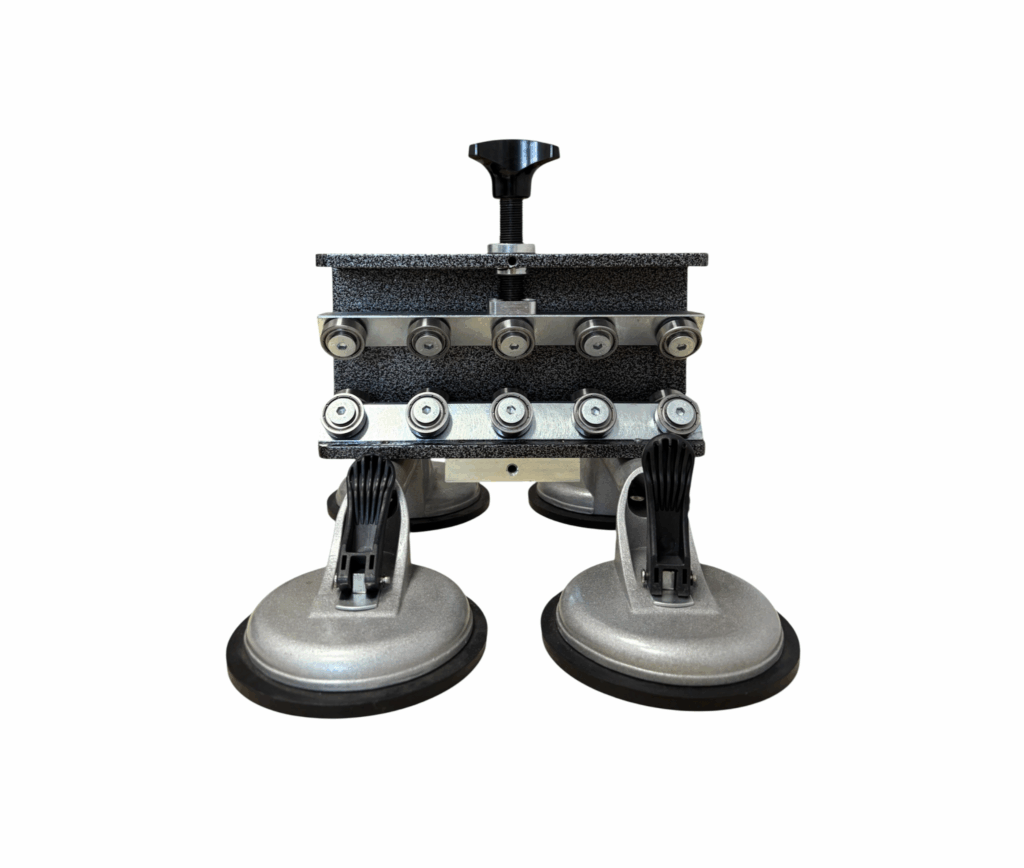

PIPE STRAIGHTENER
This tool is designed for PEX, PERT, PEX-AL-PEX pipes. Bearing rollers provide appropriate precise pressure, thanks to which the pipe is well straightened along its entire length. The straightener can be installed directly on the decoiler using the straightener arm (see code 120P), thanks to which the pipe unwinded from the coil will be perfectly straight, which will definitely facilitate the installation of underfloor heating.
Material aluminum and chrome steel
Dimensions height 250mm, length 230mm width 60mm

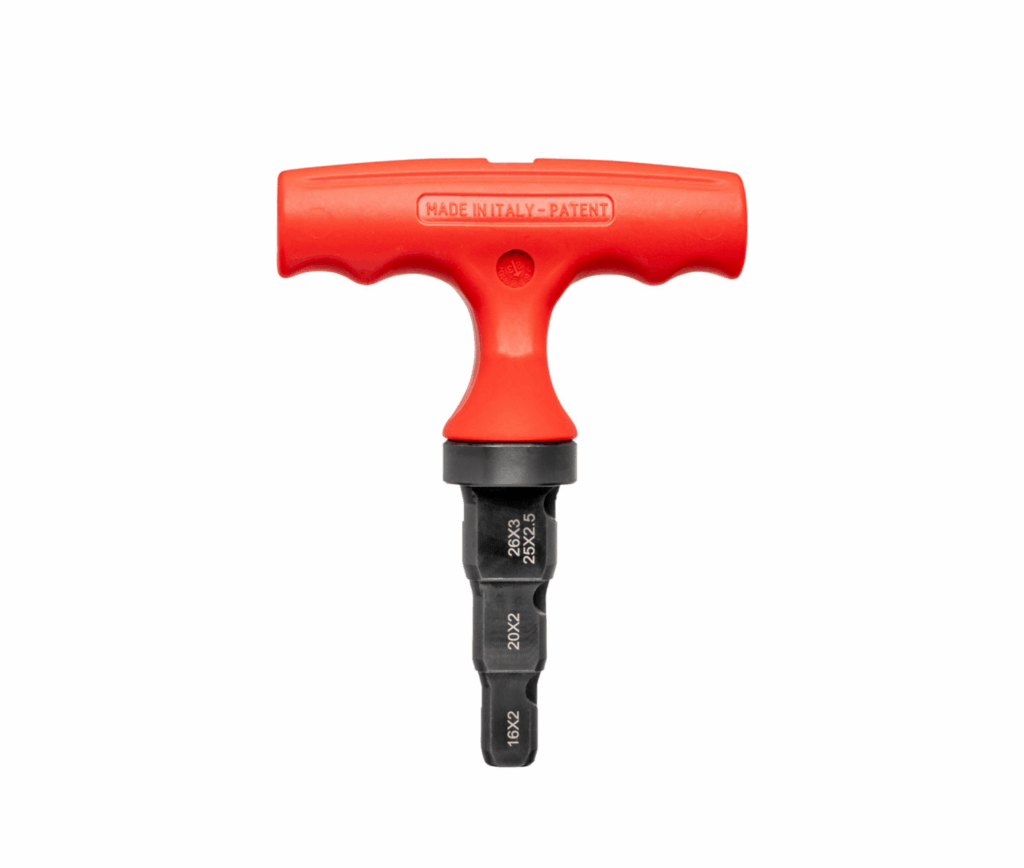

CALIBRATOR and COUNTERSINK FOR PIPES
It is a 2in1device, designed for calibrating and simultaneous chamfering of the PEX, PERT, AL-PEX, AL-PERT pipes, before inserting the connector.
It has a wide scope of: 16×2 mm; 20x2mm; 25x2mm; 25×2.5mm; 26x3mm The flat design makes it easy to insert into a flattened pipe. The cut material is discharged outside, thanks to which we avoid contamination of the pipe inside. Pleasant plastic ergonomic handle ensures comfort of work.
Possible applications for pipes: Comap, Herz, QIK, CosmoPEX, Rofix, KAN, Arka, PipeLife, Giacomini, Prandelli, Tweetop, Perfexim, Frankische, Goshe, US Metrix, Solter, IBP, Immergas, InstalComplex, Invena, Sanha, Skalar, Viessman and others

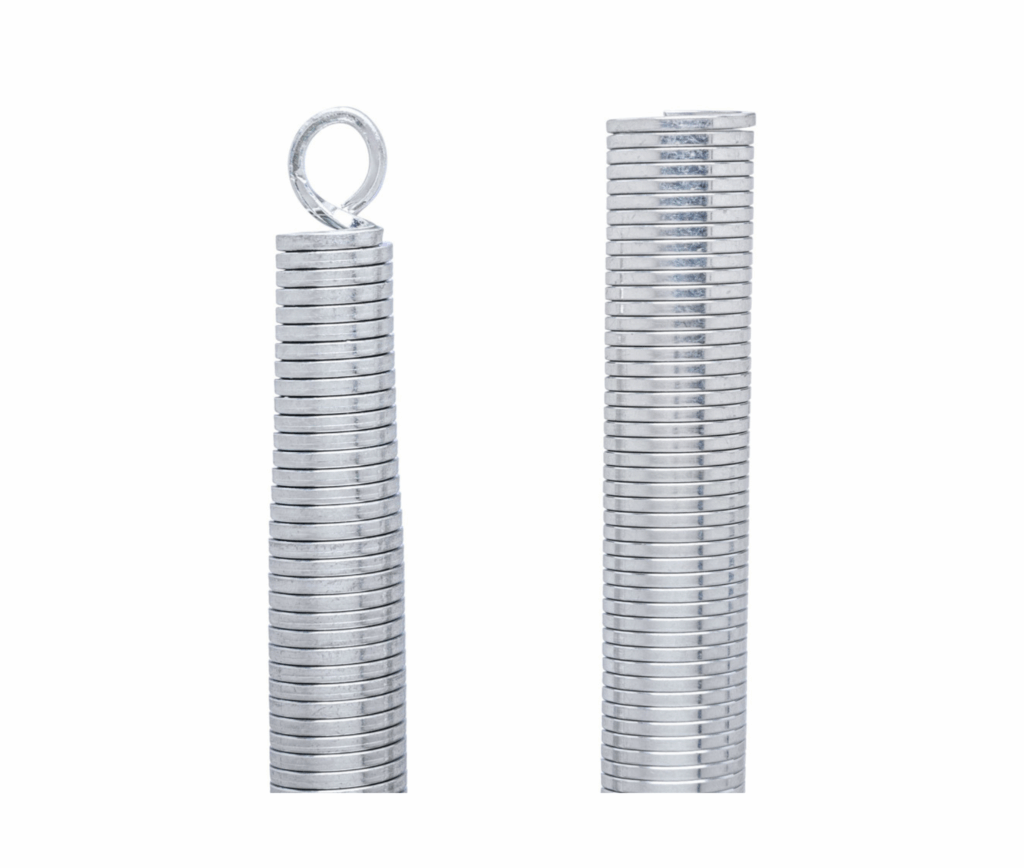

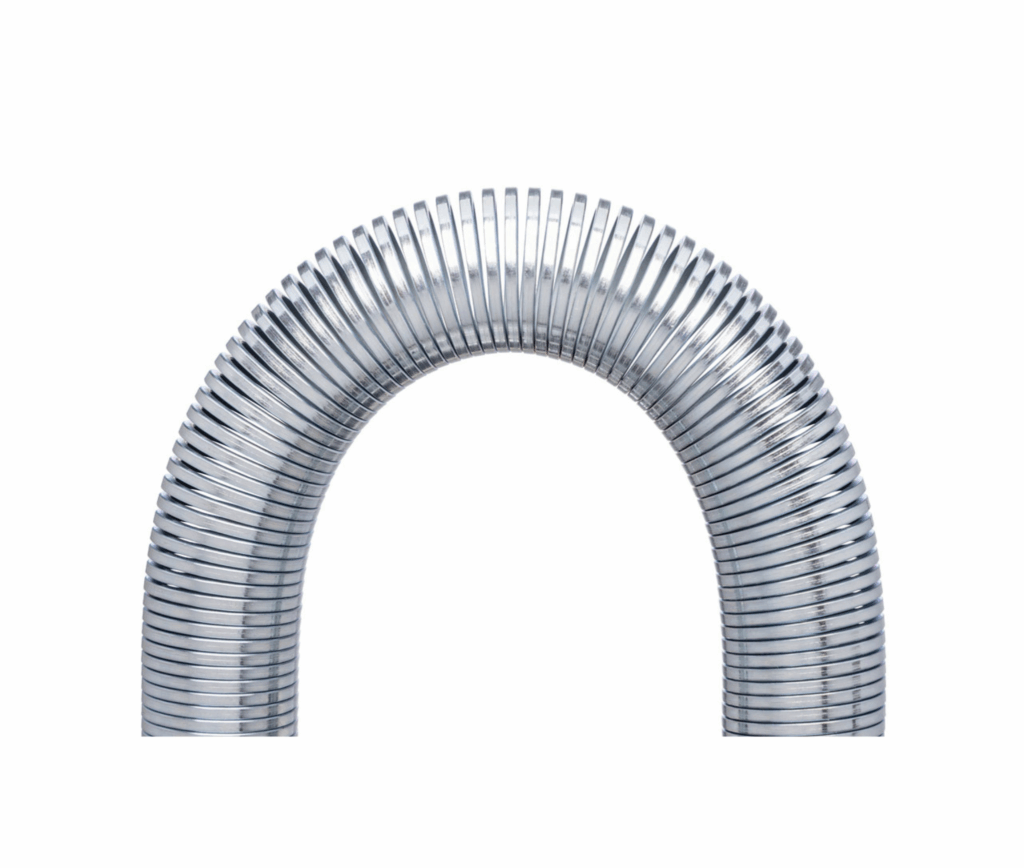

BENDING SPRINGS FOR MULTILAYER PIPES
Pipe bending springs are used to obtain a smaller bending radius without bending and narrowing the pipe cross-section. Springs are made of wire with a square cross-section with specially rounded edges. They ensure that the shape is not reproduced on the inner surface of the pipe. They are suitable for bending multilayer pipes also of the PEX-AL-PEX type.
Product is made of galvanized steel. Their length is 600mm.
They are available in the version of internal and external springs:
