SGI Heating

EDGE STRIP

Edge insulation is made of LDPE polyethylene, dedicated for making wall/floor separation partitions or expansion joints of large floor screed surfaces. The use of insulating perimeter reduces heat loss and insulates acoustically. Screed edge insulation is available in various versions – with or without a collar (overlap), with or without glue – depending on the detailed needs of individual construction projects.

Edge strip is offered in rolls of 25 or 50 meters, in blue or yellow colour version. Standard strip dimensions are 150 mm wide and 8 mm thick; on special request, it is possible to produce a wider or thinner perimeter versions.

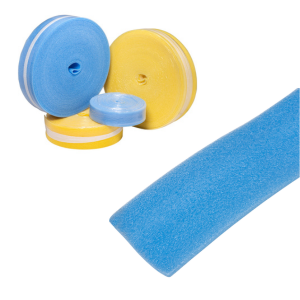

EDGE STRIP WITHOUT OVERLAP / WITHOUT GLUE

Tasma- brzegowa-bez-kolnierza
CODE: 2410N Blue 25mt
CODE: 2410Z Yellow 25mt

Dimensions length 25 or 50m; width 150mm; thickness 8mm
Material polyethylene Packed 8 rolls in a bag

CODE: 2450N Blue 50mt
CODE: 2450Z Yellow 50mt

Dimensions length 25 or 50m; width 150mm; thickness 8mm
Material polyethylene Packed 8 rolls in a bag

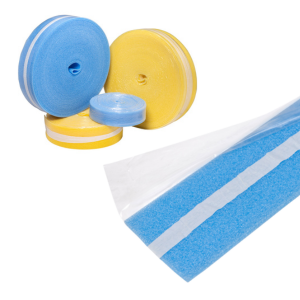

EDGE STRIP WITH OVERLAP / WITHOUT GLUE

tasma-brzegowa-z-kolnierzem-i- tasma-klejaca
CODE: 2400N Blue 25mt
CODE: 2400Z Yellow 25mt

Dimensions length 25 or 50m; width 150mm; thickness 8mm; flange width 110mm
Material polyethylene Packed 8 rolls in a bag

CODE: 2440N Blue 50mt
CODE: 2440Z Yellow 50mt

Dimensions length 25 or 50m; width 150mm; thickness 8mm; flange width 110mm
Material polyethylene Packed 8 rolls in a bag

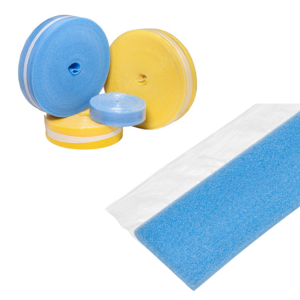

EDGE STRIP WITH OVERLAP / WITH GLUE

tasma-brzegowa-z-kolnierzem-i- tasma-klejaca
CODE: 2425NT Blue 25mt
CODE: 2425ZT Yellow 25mt

Dimensions length 25 or 50m; width 150mm; thickness 8mm; flange width 110mm
Material polyethylene Packed 8 rolls in a bag

CODE: 2450NT Blue 50mt
CODE: 2450ZT Yellow 50mt

Dimensions length 25 or 50m; width 150mm; thickness 8mm; flange width 110mm
Material polyethylene Packed 8 rolls in a bag

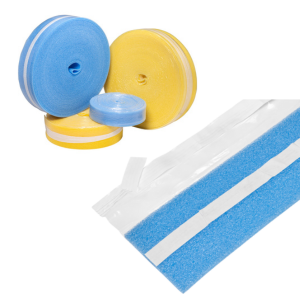

EDGE STRIP WITH OVERLAP / WITH DOUBLE GLUE

tasma-brzegowa-z-kolnierzem-i- tasma-klejaca
CODE: 2425NT2K Blue 25mt
CODE: 2425ZT2K Yellow 25mt

Dimensions length 25 or 50m; width 150mm; thickness 8mm; flange width 110mm
Material polyethylene Packed 8 rolls in a bag

CODE: 2450NT2K Blue 50mt
CODE: 2450ZT2K Yellow 50mt

Dimensions length 25 or 50m; width 150mm; thickness 8mm; flange width 110mm
Material polyethylene Packed 8 rolls in a bag
